Gears Gearboxes

Spur Gears

Introduction..... Standards..... Terminology..... Spur Gear Design..... Materials..... Basic Equations..... Module..... Pressure Angle.....
Contact Ratio..... Forces- Torques etc..... Strength Durability calcs..... Design Process..... Internal Gears..... Table of Lewis Form Factors.....

The notes below relate to spur gears.    Notes specific to helical gears are included on a separate page Helical Gears

Introduction

Gears are machine elements used to transmit rotary motion between two shafts, normally with a constant ratio.   The pinion is the smallest gear and the larger gear is called the gear wheel..   A rack is a rectangular prism with gear teeth machined along one side- it is in effect a gear wheel with an infinite pitch circle diameter.   In practice the action of gears in transmitting motion is a cam action each pair of mating teeth acting as cams.  Gear design has evolved to such a level that throughout the motion of each contacting pair of teeth the velocity ratio of the gears is maintained fixed and the velocity ratio is still fixed as each subsequent pair of teeth come into contact.   When the teeth action is such that the driving tooth moving at constant angular velocity produces a proportional constant velocity of the driven tooth the action is termed a conjugate action.   The teeth shape universally selected for the gear teeth is the involute profile.

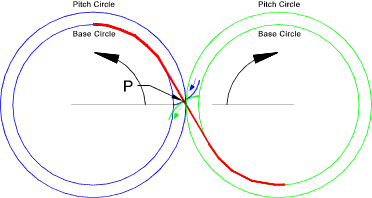

Consider one end of a piece of string is fastened to the OD of one cylinder and the other end of the string is fastened to the OD of another cylinder parallel to the first and both cylinders are rotated in the opposite directions to tension the string(see figure below).   The point on the string midway between the cylinder P is marked.   As the left hand cylinder rotates CCW the point moves towards this cylinder as it wraps on .   The point moves away from the right hand cylinder as the string unwraps.  The point traces the involute form of the gear teeth.

The lines normal to the point of contact of the gears always intersects the centre line joining the gear centres at one point called the pitch point.  For each gear the circle passing through the pitch point is called the pitch circle.  The gear ratio is proportional to the diameters of the two pitch circles.  For metric gears (as adopted by most of the worlds nations) the gear proportions are based on the module.

m = (Pitch Circle Diameter(mm)) / (Number of teeth on gear).

In the USA the module is not used and instead the Diametric Pitch d pis used

d p = (Number of Teeth) / Diametrical Pitch (inches)

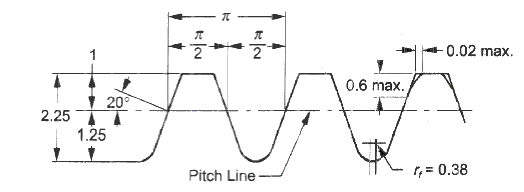

Profile of a standard 1mm module gear teeth for a gear with Infinite radius (Rack ).
Other module teeth profiles are directly proportion . e.g. 2mm module teeth are 2 x this profile


Many gears trains are very low power applications with an object of transmitting motion with minium torque e.g. watch and clock mechanisms, instruments, toys, music boxes etc. These applications do not require detailed strength calculations.




Standards
  • AGMA 2001-C95 or AGMA-2101-C95 Fundamental Rating factors and Calculation Methods for involute Spur Gear and Helical Gear Teeth
  • BS 436-4:1996, ISO 1328-1:1995..Spur and helical gears. Definitions and allowable values of deviations relevant to corresponding flanks of gear teeth
  • BS 436-5:1997, ISO 1328-2:1997..Spur and helical gears. Definitions and allowable values of deviations relevant to radial composite deviations and runout information
  • BS ISO 6336-1:1996 ..Calculation of load capacity of spur and helical gears. Basic principles, introduction and general influence factors
  • BS ISO 6336-2:1996..Calculation of load capacity of spur and helical gears. Calculation of surface durability (pitting)
  • BS ISO 6336-3:1996..Calculation of load capacity of spur and helical gears. Calculation of tooth bending strength
  • BS ISO 6336-5:2003..Calculation of load capacity of spur and helical gears. Strength and quality of materials

If it is necessary to design a gearbox from scratch the design process in selecting the gear size is not complicated - the various design formulea have all been developed over time and are available in the relevant standards.  However significant effort, judgement and expertise is required in designing the whole system including the gears, shafts , bearings, gearbox, lubrication.  For the same duty many different gear options are available for the type of gear , the materials and the quality.  It is always preferable to procure gearboxes from specialised gearbox manufacturers

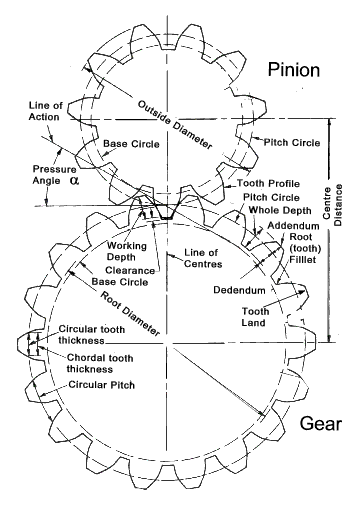

Terminology - spur gears
  • Diametral pitch (d p )...... The number of teeth per one inch of pitch circle diameter.
  • Module. (m) ...... The length, in mm, of the pitch circle diameter per tooth.
  • Circular pitch (p)...... The distance between adjacent teeth measured along the are at the pitch circle diameter
  • Addendum ( h a )...... The height of the tooth above the pitch circle diameter.
  • Centre distance (a)...... The distance between the axes of two gears in mesh.
  • Circular tooth thickness (ctt)...... The width of a tooth measured along the are at the pitch circle diameter.
  • Dedendum ( h f )...... The depth of the tooth below the pitch circle diameter.
  • Outside diameter ( D o )...... The outside diameter of the gear.
  • Base Circle diameter ( D b ) ...... The diameter on which the involute teeth profile is based.
  • Pitch circle dia ( p ) ...... The diameter of the pitch circle.
  • Pitch point...... The point at which the pitch circle diameters of two gears in mesh coincide.
  • Pitch to back...... The distance on a rack between the pitch circle diameter line and the rear face of the rack.
  • Pressure angle ...... The angle between the tooth profile at the pitch circle diameter and a radial line passing through the same point.
  • Whole depth...... The total depth of the space between adjacent teeth.




Spur Gear Design

The spur gear is is simplest type of gear manufactured and is generally used for transmission of rotary motion between parallel shafts.  The spur gear is the first choice option for gears except when high speeds, loads, and ratios direct towards other options.  Other gear types may also be preferred to provide more silent low-vibration operation.  A single spur gear is generally selected to have a ratio range of between 1:1 and 1:6 with a pitch line velocity up to 25 m/s.  The spur gear has an operating efficiency of 98-99%.  The pinion is made from a harder material than the wheel.  A gear pair should be selected to have the highest number of teeth consistent with a suitable safety margin in strength and wear.   The minimum number of teeth on a gear with a normal pressure angle of 20 desgrees is 18.

The preferred number of teeth are as follows

12 13 14 15 16 18 20 22 24 25 28 30 32 34 38 40 45 50 54 60
64 70 72 75 80 84 90 96 100 120 140 150 180 200 220 250





Materials used for gears

Mild steel is a poor material for gears as as it has poor resistance to surface loading.   The carbon content for unhardened gears is generally 0.4%(min) with 0.55%(min) carbon for the pinions.  Dissimilar materials should be used for the meshing gears - this particularly applies to alloy steels.  Alloy steels have superior fatigue properties compared to carbon steels for comparable strengths.  For extremely high gear loading case hardened steels are used the surface hardening method employed should be such to provide sufficient case depth for the final grinding process used.


MaterialNotesapplications
Ferrous metals
Cast Iron Low Cost easy to machine with high damping Large moderate power, commercial gears
Cast Steels Low cost, reasonable strength Power gears with medium rating to commercial quality
Plain-Carbon Steels Good machining, can be heat treated Power gears with medium rating to commercial/medium quality
Alloy Steels Heat Treatable to provide highest strength and durability Highest power requirement. For precision and high precisiont
Stainless Steels (Aust) Good corrosion resistance. Non-magnetic Corrosion resistance with low power ratings. Up to precision quality
Stainless Steels (Mart) Hardenable, Reasonable corrosion resistance, magnetic Low to medium power ratings Up to high precision levels of quality
Non-Ferrous metals
Aluminium alloys Light weight, non-corrosive and good machinability Light duty instrument gears up to high precision quality
Brass alloys Low cost, non-corrosive, excellent machinability low cost commercial quality gears. Quality up to medium precision
Bronze alloys Excellent machinability, low friction and good compatability with steel For use with steel power gears. Quality up to high precision
Magnesium alloys Light weight with poor corrosion resistance Ligh weight low load gears. Quality up to medium precision
Nickel alloys Low coefficient of thermal expansion. Poor machinability Special gears for thermal applications to commercial quality
Titanium alloys High strength, for low weight, good corrosion resistance Special light weight high strength gears to medium precision
Di-cast alloys Low cost with low precision and strength High production, low quality gears to commercial quality
Sintered powder alloys Low cost, low quality, moderate strength High production, low quality to moderate commercial quality
Non metals
Acetal (Delrin Wear resistant, low water absorbtionLong life , low load bearings to commercial quality
Phenolic laminates Low cost, low quality, moderate strength High production, low quality to moderate commercial quality
Nylons No lubrication, no lubricant, absorbs water Long life at low loads to commercial quality
PTFE Low friction and no lubrication Special low friction gears to commercial quality





Equations for basic gear relationships

It is acceptable to marginally modify these relationships e.g to modify the addendum /dedendum to allow Centre Distance adjustments. Any changes modifications will affect the gear performance in good and bad ways...


Addendum h a = m = 0.3183 p
Base Circle diameter Db = d.cos α
Centre distance a = ( d g + d p) / 2
Circular pitch p = m.π
Circular tooth thickness    ctt = p/2
Dedendum h f = h - a = 1,25m = 0,3979 p
Module m = d /z
Number of teeth z = d / m
Outside diameter D o = (z + 2) x m
Pitch circle diameter d = z . m ... (d g = gear & d p = pinion )
Whole depth(min) h = 2.25 . m
Top land width(min) t o = 0,25 . m

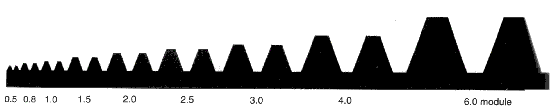

Module (m)

The module is the ratio of the pitch diameter to the number of teeth. The unit of the module is milli-metres.Below is a diagram showing the relative size of teeth machined in a rack with module ranging from module values of 0,5 mm to 6 mm

The preferred module values are

0,5    0,8    1     1,25     1,5     2,5     3     4     5     6     8     10   12     16     20     25     32     40     50




Normal Pressure angle α

An important variable affecting the geometry of the gear teeth is the normal pressure angle.  This is generally standardised at 20o.  Other pressure angles should be used only for special reasons and using considered judgment. The following changes result from increasing the pressure angle

  • Reduction in the danger of undercutting and interference
  • Reduction of slipping speeds
  • Increased loading capacity in contact, seizure and wear
  • Increased rigidity of the toothing
  • Increased noise and radial forces

Gears required to have low noise levels have pressure angles 15o to17.5o






Contact Ratio

The gear design is such that when in mesh the rotating gears have more than one gear in contact and transferring the torque for some of the time.   This property is called the contact ratio.  This is a ratio of the length of the line-of-action to the base pitch.   The higher the contact ratio the more the load is shared between teeth.  It is good practice to maintain a contact ratio of 1.2 or greater. Under no circumstances should the ratio drop below 1.1.

A contact ratio between 1 and 2 means that part of the time two pairs of teeth are in contact and during the remaining time one pair is in contact.   A ratio between 2 and 3 means 2 or 3 pairs of teeth are always in contact.   Such as high contact ratio generally is not obtained with external spur gears, but can be developed in the meshing of an internal and external spur gear pair or specially designed non-standard external spur gears.


                   (Rgo2 - Rgb2 )1/2 + (Rpo2 - Rpb2 )1/2  -  a sin α
contact ratio m =
        p cos α

R go = D go / 2..Radius of Outside Dia of Gear
R gb = D gb / 2..Radius of Base Dia of Gear
R po = D po / 2..Radius of Outside Dia of Pinion
R pb = D pb / 2..Radius of Base Dia of Pinion
p = circular pitch.
a = ( d g+ d p )/2 = center distance.





Spur gear Forces, torques, velocities & Powers
  • F = tooth force between contacting teeth (at angle pressure angle α to pitch line tangent. (N)
  • F t = tangential component of tooth force (N)
  • F s = Separating component of tooth force
  • α= Pressure angle
  • d 1 = Pitch Circle Dia -driving gear (m)
  • d 2 = Pitch Circle Dia -driven gear (m)
  • ω 1 = Angular velocity of driver gear (Rads/s)
  • ω 2 = Angular velocity of driven gear (Rads/s)
  • z 1 = Number of teeth on driver gear
  • z 2 = Number of teeth on driven gear
  • P = power transmitted (Watts)
  • M = torque (Nm)
  • η = efficiency

Tangential force on gears F t = F cos α

Separating force on gears F s = F t tan α

Torque on driver gear T 1 = F t d 1 / 2

Torque on driver gear T 2 = F t d 2 / 2

Speed Ratio =ω 1 / ω 2 = d 2 / d 1 = z 2 /z 1

Input Power P 1 = T11

Output Power P 2 =η.T 12




Spur gear Strength and durability calculations

Designing spur gears is normally done in accordance with standards the two most popular series are listed under standards above:

The notes below relate to approximate methods for estimating gear strengths. The methods are really only useful for first approximations and/or selection of stock gears (ref links below). — Detailed design of spur and helical gears is best completed using the standards.   Books are available providing the necessary guidance.   Software is also available making the process very easy.   A very reasonably priced and easy to use package is included in the links below (Mitcalc.com)

The determination of the capacity of gears to transfer the required torque for the desired operating life is completed by determining the strength of the gear teeth in bending and also the durability i.e of the teeth ( resistance to wearing/bearing/scuffing loads ) .. The equations below are based on methods used by Buckingham..






Bending


The basic bending stress for gear teeth is obtained by using the Lewis formula

σ = Ft / ( ba. m. Y )

  • F t = Tangential force on tooth
  • σ = Tooth Bending stress (MPa)
  • b a = Face width (mm)
  • Y = Lewis Form Factor
  • m = Module (mm)
Note: The Lewis formula is often expressed as

σ = Ft / ( ba. p. y )


Where y = Y/π and p = circular pitch

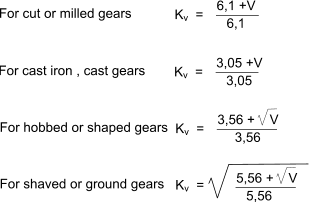

When a gear wheel is rotating the gear teeth come into contact with some degree of impact.  To allow for this a velocity factor ( Kv ) is introduced into the equation.   This is given by the Barth equation...

V = the pitch line velocity = d.ω/2 (m/s)

The Lewis formula is thus modified as follows

σ = K v.Ft / ( ba. m. Y )




Surface Durability

This calculation involves determining the contact stress between the gear teeth and utilises a Herzian contact stress analysis .    This is based on the analysis of two cylinders ,in contact alon their length and subject to a radial force.

σ w = 2.F / ( π .b .l )

σ w = largest surface pressure
F = force pressing the two cylinders (gears) together
l = length of the cylinders (gear)
b = halfwidth = half of the width of the contact surface between the two cylinders.

d 1 ,d 2 Are the diameters for the two contacting cylinders.
ν 1, ν 2 Poisson ratio for the two gear materials
E 1 ,E 2 Are the Young's Modulus Values for the two gears

To arrive at the formula used for gear calculations the following changes are made
σ w is replaced by σ c (dynamic contact stress)
F is replaced by F t / cos α
d is replaced by 2.r
l is replaced by W ( Face width of gear)
The velocity factor K v as described above is introduced.
Also an elastic constant Z E is created

When the value of E used is in MPa then the units of Ze are √ MPa . The Imperial version of Ze is Cp with value of E used in psi and value of Cp = √ psi
The resulting formula for the compressive stress developed is as shown below

Note: r1 and r2are the radii of curvature of the tooth surfaces at the contact point.
As gear tooth wear is generally first found at the pitch point, the curvatures at the pitch point are used:

r1 = d1 sin α /2
r2 = d2 sin α /2

The dynamic contact stress σc developed by the transmitted torque must be less than the allowable contact stress Se...

Note: Values for Allowable stress value (Se) and the elastic constant ZE for some materials are provided at   Gear Table



Important Note: The above equations do not take into account the various factors which are integral to calculations completed using the relevant standards. These equations therefore yield results suitable for first estimate design purposes only...




Design Process

To select gears from a stock gear catalogue or do a first approximation for a gear design select the gear material and obtain a safe working stress e.g Yield stress / Factor of Safety. /Safe fatigue stress

  • Determine the input speed, output speed, ratio, torque to be transmitted
  • Select materials for the gears ( pinion is more highly loaded than gear )
  • Determine safe working stresses (uts /factor of safety or yield stress/factor of safety or Fatigue strength / Factor of safety )
  • Determine Allowable endurance Stress Se
  • Select a module value and determine the resulting geometry of the gear
  • Use the lewis formula and the endurance formula to establish the resulting face width
  • If the gear proportions are reasonable then - proceed to more detailed evaluations
  • If the resulting face width is excessive - change the module or material or both and start again

The gear face width should be selected in the range 9-15 x module or for straight spur gears-up to 60% of the pinion diameter.

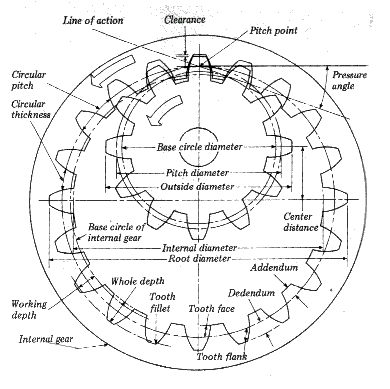

Internal Gears

Advantages:

  1. Geometry ideal for epicyclic gear design
  2. Allows compact design since the center distance is less than for external gears.
  3. A high contact ratio is possible.
  4. Good surface endurance due to a convex profile surface working against a concave surface.

Disadvantages:

  1. Housing and bearing supports are more complicated, because the external gear nests within the internal gear.
  2. Low ratios are unsuitable and in many cases impossible because of interferences.
  3. Fabrication is limited to the shaper generating process, and usually special tooling is required.






Lewis form factor.

Table of lewis form factors for different tooth forms and pressure angles

No Teeth   Load Near Tip of Teeth Load at Near Middle of Teeth
14 1/2 deg 20 deg FD 20 deg Stub 25 deg 14 1/2 deg 20 deg FD
    Y y Y y Y y Y y Y y Y y
10   0,176 0,056 0,201 0,064 0,261 0,083 0,238 0,076
11   0,192 0,061 0,226 0,072 0,289 0,092 0,259 0,082
12   0,21 0,067 0,245 0,078 0,311 0,099 0,277 0,088 0,355 0,113 0,415 0,132
13   0,223 0,071 0,264 0,084 0,324 0,103 0,293 0,093 0,377 0,12 0,443 0,141
14   0,236 0,075 0,276 0,088 0,339 0,108 0,307 0,098 0,399 0,127 0,468 0,149
15   0,245 0,078 0,289 0,092 0,349 0,111 0,32 0,102 0,415 0,132 0,49 0,156
16   0,255 0,081 0,295 0,094 0,36 0,115 0,332 0,106 0,43 0,137 0,503 0,16
17   0,264 0,084 0,302 0,096 0,368 0,117 0,342 0,109 0,446 0,142 0,512 0,163
18   0,27 0,086 0,308 0,098 0,377 0,12 0,352 0,112 0,459 0,146 0,522 0,166
19   0,277 0,088 0,314 0,1 0,386 0,123 0,361 0,115 0,471 0,15 0,534 0,17
20   0,283 0,09 0,32 0,102 0,393 0,125 0,369 0,117 0,481 0,153 0,544 0,173
21   0,289 0,092 0,326 0,104 0,399 0,127 0,377 0,12 0,49 0,156 0,553 0,176
22   0,292 0,093 0,33 0,105 0,404 0,129 0,384 0,122 0,496 0,158 0,559 0,178
23   0,296 0,094 0,333 0,106 0,408 0,13 0,390 0,124 0,502 0,16 0,565 0,18
24   0,302 0,096 0,337 0,107 0,411 0,131 0,396 0,126 0,509 0,162 0,572 0,182
25   0,305 0,097 0,34 0,108 0,416 0,132 0,402 0,128 0,515 0,164 0,58 0,185
26   0,308 0,098 0,344 0,109 0,421 0,134 0,407 0,13 0,522 0,166 0,584 0,186
27   0,311 0,099 0,348 0,111 0,426 0,136 0,412 0,131 0,528 0,168 0,588 0,187
28   0,314 0,1 0,352 0,112 0,43 0,137 0,417 0,133 0,534 0,17 0,592 0,188
29   0,316 0,101 0,355 0,113 0,434 0,138 0,421 0,134 0,537 0,171 0,599 0,191
30   0,318 0,101 0,358 0,114 0,437 0,139 0,425 0,135 0,54 0,172 0,606 0,193
31   0,32 0,101 0,361 0,115 0,44 0,14 0,429 0,137 0,554 0,176 0,611 0,194
32   0,322 0,101 0,364 0,116 0,443 0,141 0,433 0,138 0,547 0,174 0,617 0,196
33   0,324 0,103 0,367 0,117 0,445 0,142 0,436 0,139 0,55 0,175 0,623 0,198
34   0,326 0,104 0,371 0,118 0,447 0,142 0,44 0,14 0,553 0,176 0,628 0,2
35   0,327 0,104 0,373 0,119 0,449 0,143 0,443 0,141 0,556 0,177 0,633 0,201
36   0,329 0,105 0,377 0,12 0,451 0,144 0,446 0,142 0,559 0,178 0,639 0,203
37   0,33 0,105 0,38 0,121 0,454 0,145 0,449 0,143 0,563 0,179 0,645 0,205
38   0,333 0,106 0,384 0,122 0,455 0,145 0,452 0,144 0,565 0,18 0,65 0,207
39   0,335 0,107 0,386 0,123 0,457 0,145 0,454 0,145 0,568 0,181 0,655 0,208
40   0,336 0,107 0,389 0,124 0,459 0,146 0,457 0,145 0,57 0,181 0,659 0,21
43   0,339 0,108 0,397 0,126 0,467 0,149 0,464 0,148 0,574 0,183 0,668 0,213
45   0,34 0,108 0,399 0,127 0,468 0,149 0,468 0,149 0,579 0,184 0,678 0,216
50   0,346 0,11 0,408 0,13 0,474 0,151 0,477 0,152 0,588 0,187 0,694 0,221
55   0,352 0,112 0,415 0,132 0,48 0,153 0,484 0,154 0,596 0,19 0,704 0,224
60   0,355 0,113 0,421 0,134 0,484 0,154 0,491 0,156 0,603 0,192 0,713 0,227
65   0,358 0,114 0,425 0,135 0,488 0,155 0,496 0,158 0,607 0,193 0,721 0,23
70   0,36 0,115 0,429 0,137 0,493 0,157 0,501 0,159 0,61 0,194 0,728 0,232
75   0,361 0,115 0,433 0,138 0,496 0,158 0,506 0,161 0,613 0,195 0,735 0,234
80   0,363 0,116 0,436 0,139 0,499 0,159 0,509 0,162 0,615 0,196 0,739 0,235
90   0,366 0,117 0,442 0,141 0,503 0,16 0,516 0,164 0,619 0,197 0,747 0,238
100   0,368 0,117 0,446 0,142 0,506 0,161 0,521 0,166 0,622 0,198 0,755 0,24
150   0,375 0,119 0,458 0,146 0,518 0,165 0,537 0,171 0,635 0,202 0,778 0,248
200   0,378 0,12 0,463 0,147 0,524 0,167 0,545 0,173 0,64 0,204 0,787 0,251
300   0,38 0,122 0,471 0,15 0,534 0,17 0,554 0,176 0,65 0,207 0,801 0,255
Rack   0,39 0,124 0,484 0,154 0,55 0,175 0,566 0,18 0,66 0,21 0,823 0,262


Links to Gear Design
  1. OnDrives-precision gears ... Supplier of Gears / Gearboxes,Including technical info ( download)
  2. Gear Design ...A comprehensive source of Gear Design Information
  3. Efunda ...Efunda -> Design Centre-> Gears.. Some useful Notes.
  4. Gear Design Topics ... A site providing amazing motion graphics of different gear types
  5. SEW Eurodrive...All the information on Gearboxes you will need
  6. Quality Transmission Components...Supplier with downloadable Gear Design Handbook
  7. Stock Drive Products= Sterling Instruments...Supplier with large quantity of downloadable drive information
  8. Mitcalc...Excel based software including coded gear design
  9. Lenze...Drive system supplier with geared motor section
  10. Davall Gears...UK Supplier of stock gears and gearboxes
  11. Muffett gears...UK Supplier of stock gears and gearboxes
  12. Gear Design Lecture Notes...Plymouth.ac.uk - Useful Notes on gear strength design


Drive_Index
Gears Gearboxes
